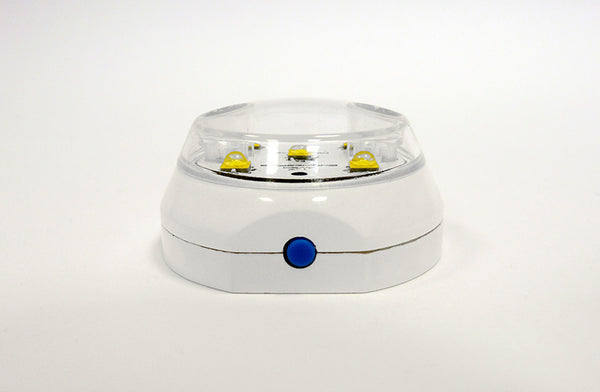

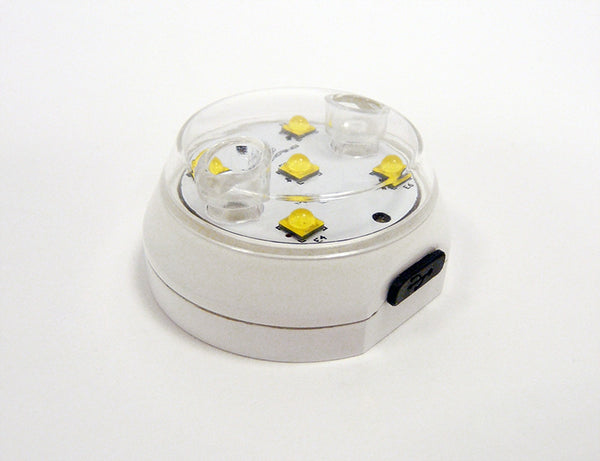

PicoMax™ (UAV)

$130.00

  • PicoMax™ RED
  • PicoMax™ WHITE
Pin It

Product details

KA Note:  This is the UAV / Drone anti-collision light for the masses.  Select the LED color you would like from the 2 choices above (Red, White).  Then click the Add to Cart button.

MSRP: $139.00  Aveo introduces the ultimate small drone strobe light, PicoMax™, a cousin of its highly successful MicroMax™ defense industry strobe for UAVs.

Battery operated with DC adapter recharging, the PicoMax™ will strobe for longer than your drone flies on its charge. Exceeding the 2 nautical mile standard, the PicoMax™ actually surpasses 3 nm, and due to its proprietary Aveo firmware and circuitry it offers the brightest and fully airworthy tested features for the serious drone operator.

PicoMax™ comes in either  red  or  white  strobe color.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

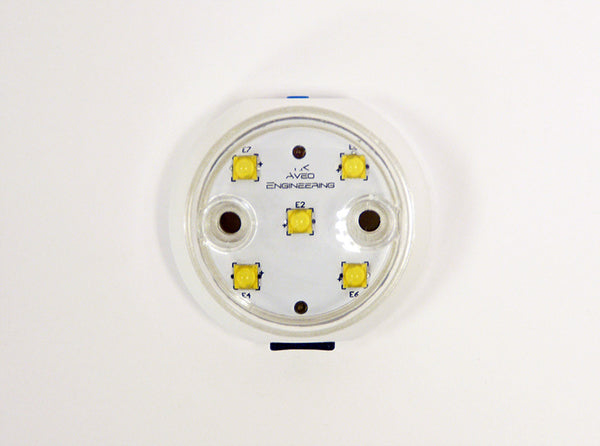

Packed with 5 ultra high brightness CREE LEDs in RED or WHITE color that are the industry state-of-the-art in performance and output lumens, the PicoMax features a significantly lower footprint than competitor lights.















water shock dust proof

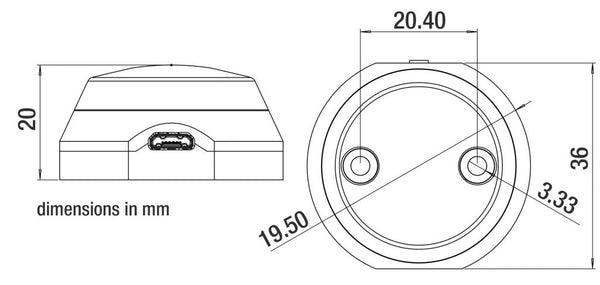

Dimensions (mm): 20 mm x 36 mm
Dimensions (inches): 0.79” x 1.42”
Weight (g): 13 g
Weight (oz): 0.46 oz
Input Voltage: 3 – 4,2V (Li-Ion - 80 mAh)
Output Power: approx. 3.5 W Peak
Battery Time: approx. 60 min
Repetition Rate of Strobe: 50ms ON, 50ms OFF, 50ms ON, 850ms OFF
Ambient Temperature: from -20°C to +65°C
from -4°F to +149°F
Overheat Protection: YES (+70°C)
Other Features:

o Microcontroller drive
o Pushbutton ON/OFF
o Auto OFF when full discharge
o Signal LED for battery charge status
o Charge status (one blink 100%-40%, two blink 40%-20%, four blink 20%-0%)
o Signal LED for charging status (ON when charging, OFF when full charge)
o Micro USB Charging
o Synchronization input
o RF control input - for ON/OFF
o External battery via USB



 For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
