EyeBeam Dome™
$232.00
Product details
K-A Note: Select the faceplate color you would like from the choices above (Black, Silver). Then click the Add to Cart button. White LED only. Provides a diffused light over the cabin rather than a beam.

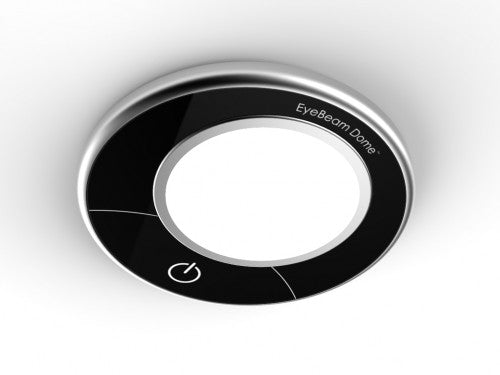

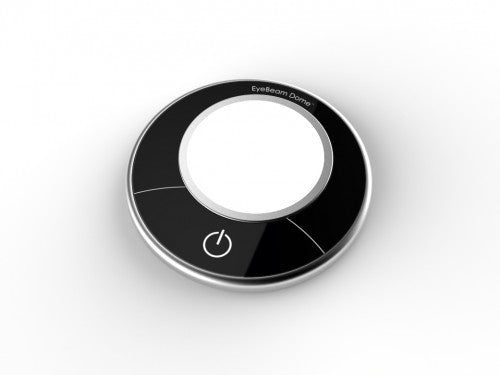

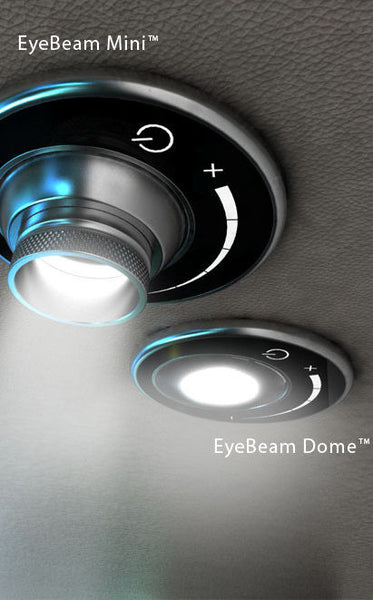

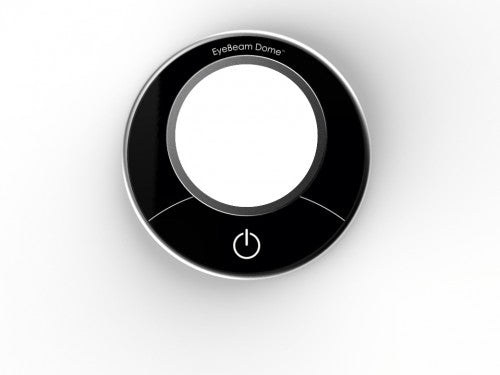

MSRP: $240.00 The EyeBeam Dome was developed to meet the requests of an interior dome light for all aircraft, that would complement the amazing Aveo EyeBeam products, and their unique touch-controls. Long gone are the days of mechanical switches which can corrode and spark, etc.
Key Features
- Aveo's exclusive touch-control sense operation

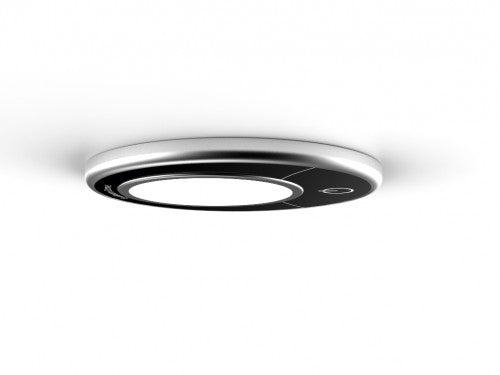

- Low profile design for sleek appearance
- Ability to connect to Aveo's EyeBeam Remote touch panels, one for pilot and one for cabin if desired
- Available with different lensing and different color leds
| Diameter: | 63 mm / 2.48” |
|---|---|
| Weight: | 80 g / 2.82 oz |
| Operating Voltage Range: |
9 – 36 Vdc |
| Nominal Voltage: | 12V or 24V |
| Current ( @12V): | 0.2A (full brightness) |
| LED Color: | Neutral White |
| Wide viewing angle | 115°-130° |
For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
