KA Note: 28 VDC Great size and great brightness in a rectangular light. Select either Landing or Taxi version and then click the Add to Cart button.
Need a MOUNTING BRACKET? Click HERE to see brackets.

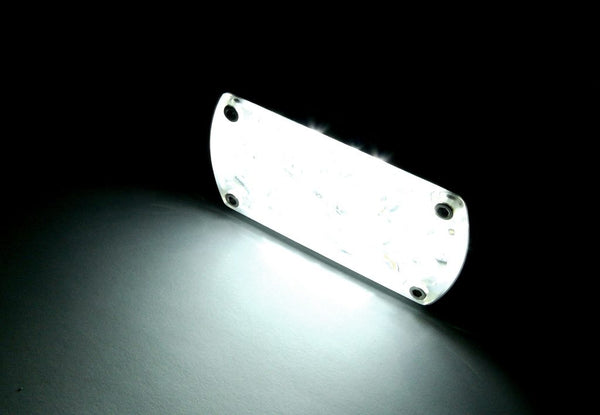

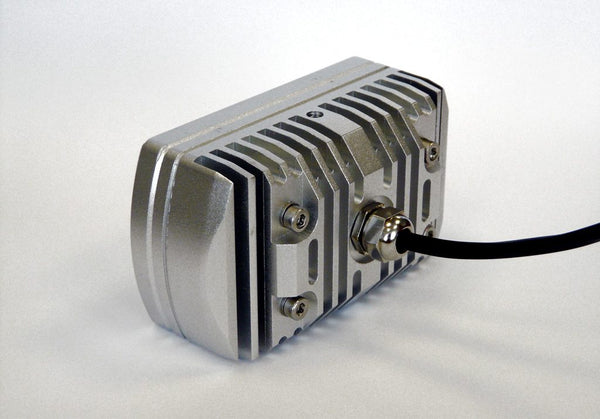

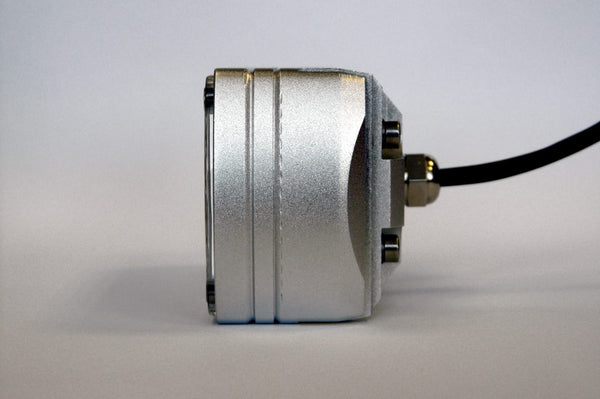

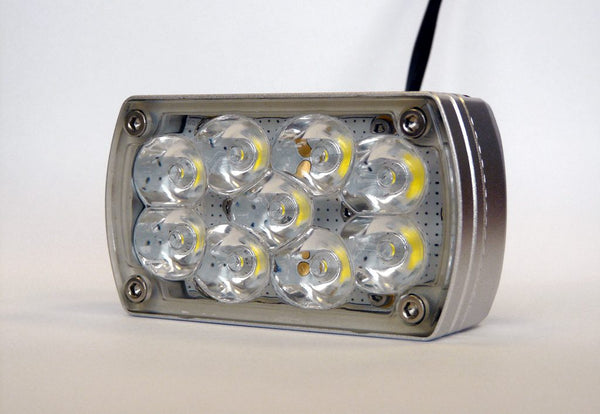

MSRP: $389.00 The new Nubion™ is a 28-volt drop-in replacement for old Legacy lights. Landing OR Taxi light with Wig-Wag function. Our exclusive and highly advanced optics, our unmatched power and led management circuitry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

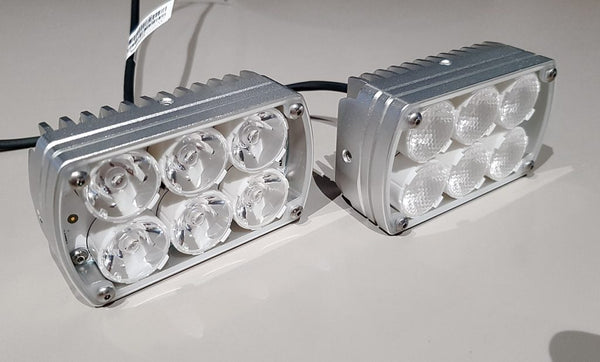

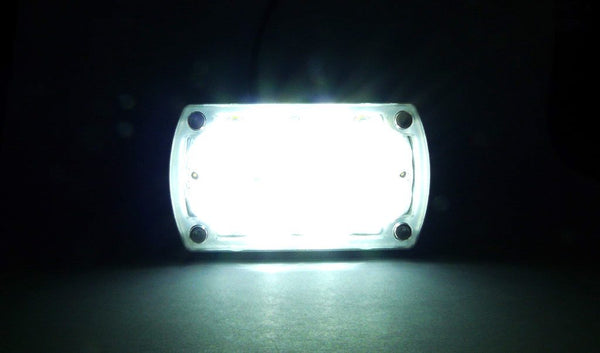

Landing or Taxi LED light with WigWag function

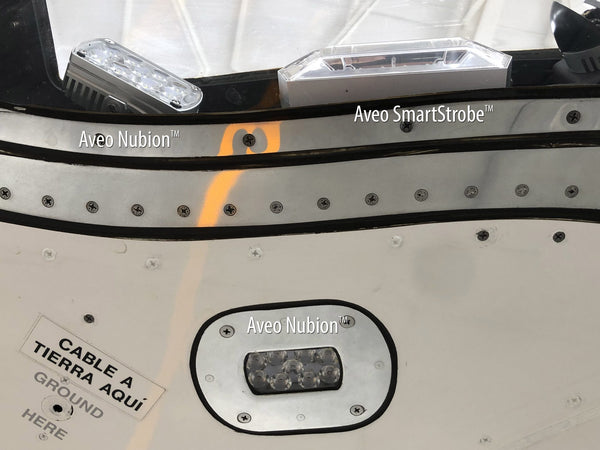

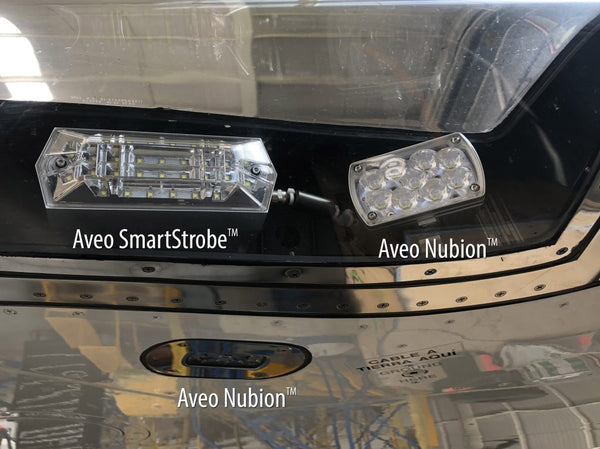

Drop-In REPLACEMENT for old legacy lights

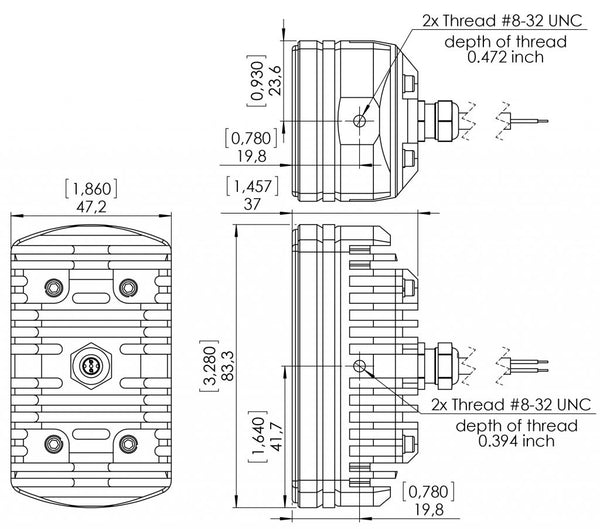

|Dimensions (mm):||83,3 mm x 47,2 mm x 37 mm|
|Dimensions (inches):||3.280“ x 1.860“ x 1.457“|
|Weight:||220g / 7.76 oz|
|Operating Voltage Range:||18 – 36 VDC|
|Input Current (@18V):||1.2 A (+/-5%)|
|Input Current (@28V):||0.75 A (+/-5%)|
|Output Power:||18 W|
|Ambient Temperature:||from -55°C to +85°C
from -67°F to +185°F
|Taxi Lens – Viewing Angle:||40° x 20°|
|Landing Lens – Viewing Angle:||12°|
|Reverse Polarity Protection:||Yes|
|Over-Voltage Protection:||80V (1s)|
|Over-Voltage Lockout:||38.5 VDC|
|Waterproof, Dust-proof, Shock-proof, Vibration-proof:||YES|
For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
