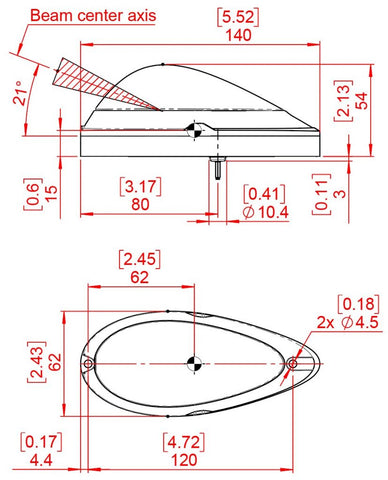

Pacifica NXT™
$349.00
Product details
K-A Note: High speed.......Low drag! Super clean landing or taxi light. New, cleaner design and less complicated to order!

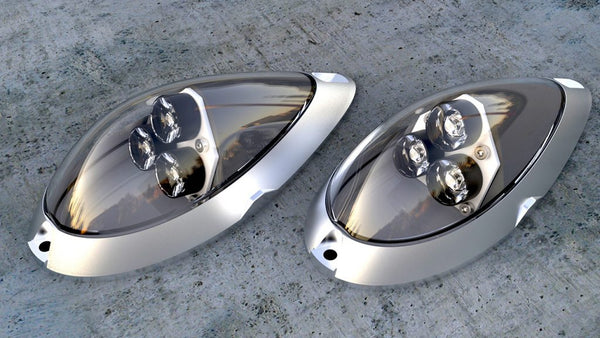

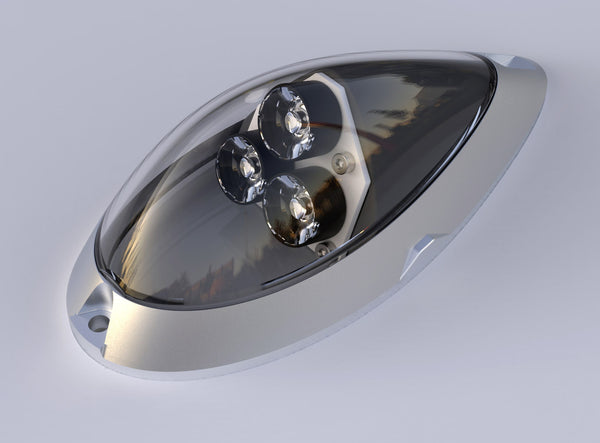

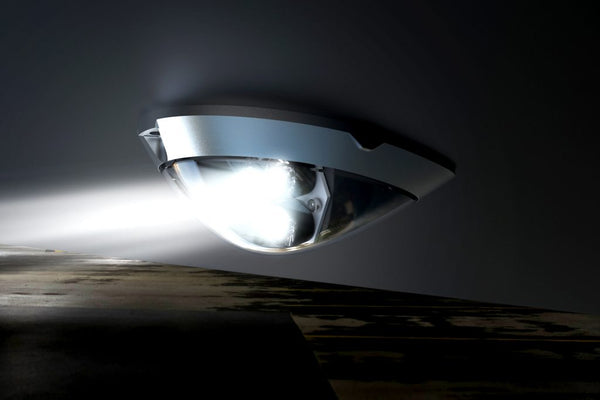

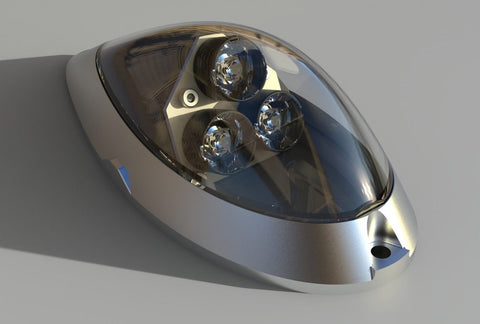

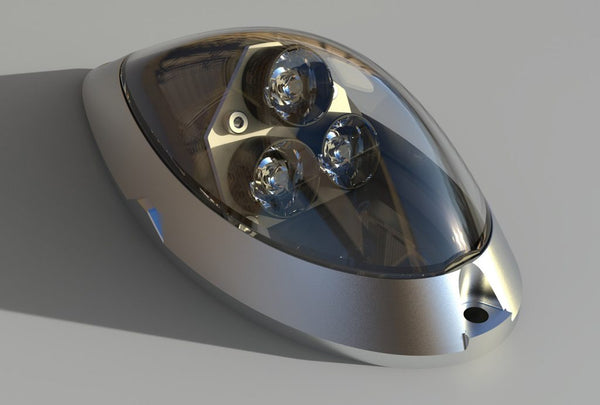

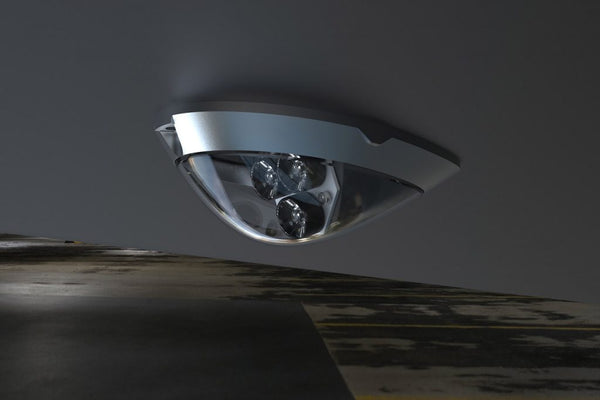

Aerodynamic Under-wing or Under-fuselage Taxi or Landing Light
MSRP: $359.00 Aveo Introduces the Aerodynamic under-wing/under fuselage Pacifica Series of taxi or landing lights. Incorporating Aveo’s proprietary CuPillar™, AfterBurners™ and NTC technologies, coupled with our KrystalKelvin™ optical grade lenses for exact wavelength transmissions. Aveo makes retrofit upgrades easily possible for incredible intensity lights in low drag, simple to mount shapes.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification

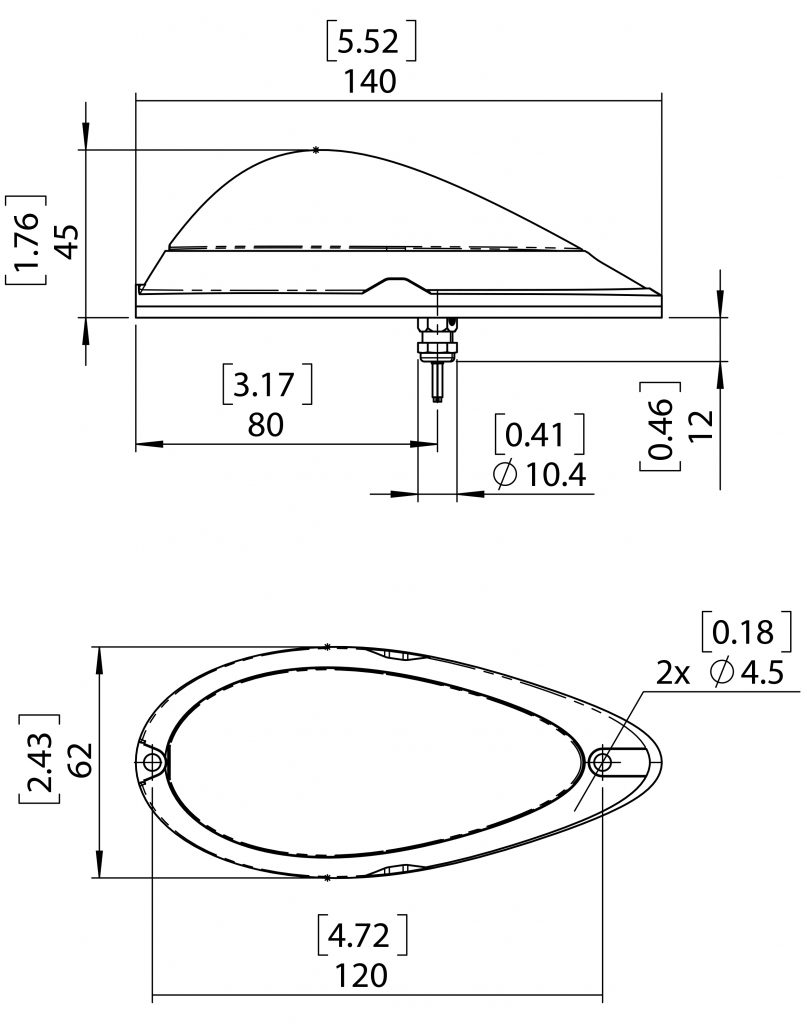

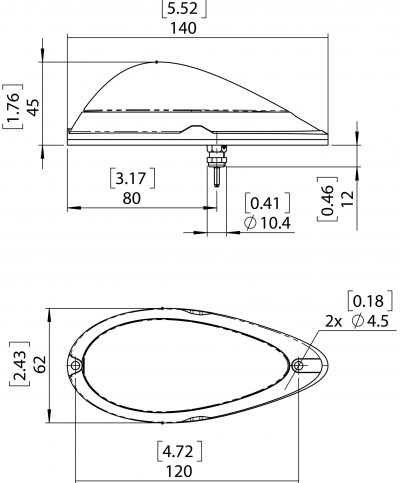

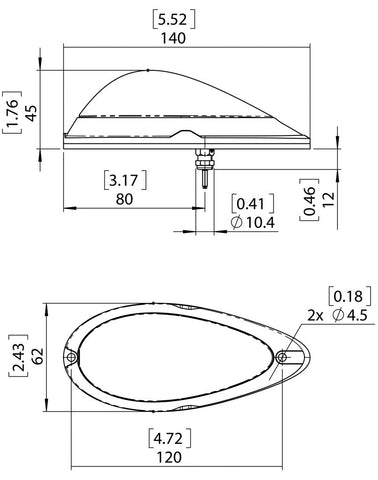

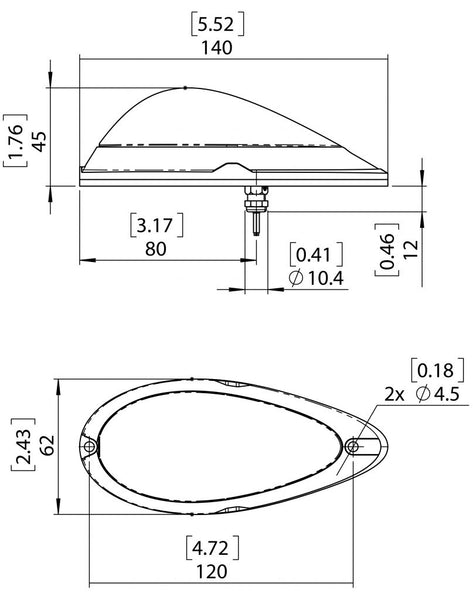

| Dimensions (mm): | 140 mm x 45 mm x 62 mm |
|---|---|
| Dimensions (inches): | 5.52“ x 1.76“ x 2.43“ |
| Weight: | 180 g / 6.35 oz |
| Operating Voltage Range: | 9–36 VDC |
| Input Current (at 25°C): | 0.94A @14 VDC 0.47A @28 VDC |
| Input Power: | 13.16W @14 VDC 13.16W @28 VDC |
| Ambient Temperature: | from -40°C to +85°C from -40°F to +185°F |
| Overheat Protection: | Yes (temperature dependent decrement of intensity) |
| Transient Voltage: | 1 second +90 V |
| Under-Voltage Lockout: | +5.6 VDC, not more |
| Over-Voltage Lockout: | +37.8 VDC, not less |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
Intensity
INSTALLATION MANUAL
