Supernova DV DayLite™

$355.00

  • RED
  • WHITE
  • GREEN
Pin It

Product details

 K-A Note:  Designed for the demands of military/civilian UAS's.  If you're an OEM or just seriously into UAV/Drones, this anti-collision light is for you.  Precision-engineered light weight aluminum construction.  Also perfect for Trikes & PPC's.  Select the LED color you would like from the 3 choices above Red, White, Green (Green is a special order light).  Then click the Add to Cart button.

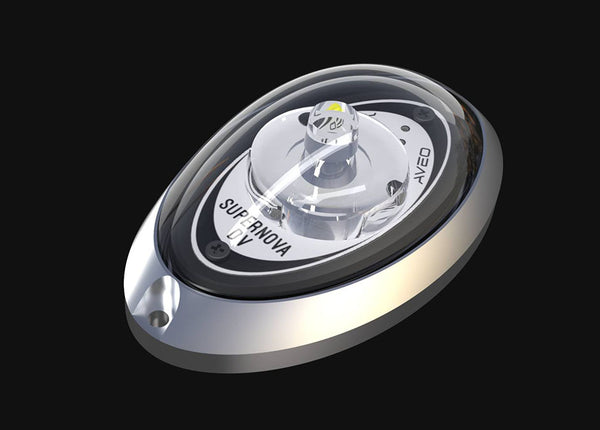

SuperNova DV drone

Anti-collision LED light Red, White, or Green

MSRP: $366.00 The SuperNova DV – White or Red or Green tiny anti-collision light is a high powered LED light. It have been designed to be lightweight, with low drag and with a low power draw to meet the highest requirements of all aircraft. It contains of red or white or Green LEDs.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT

THIS IS NOT A TSO CERTIFIED LIGHT

SuperNova DV anticollision

Specification

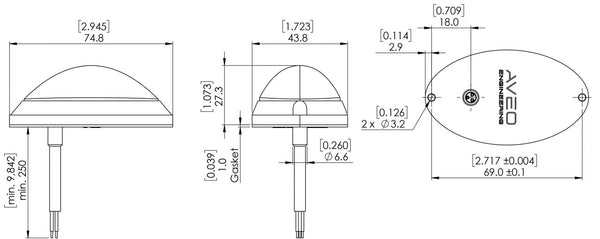

Dimensions (mm): 74.8 x 43.8 x 27.3
Dimensions (inches): 2.945“ x 1.723“ x 1.073“
Weight: 64g / 2.25 oz
Operating Voltage Range: 9-18 V DC
Input Current @14V (peak)
Red: (AVE-SNDVSYR-D01)
White: (AVE-SNDVSYW-D01)
Green: (AVE-SNDVSYG-D01)

0.25 A
0.26 A
0.34 A
Input Power @14V (peak)
Red: (AVE-SNDVSYR-D01)
White: (AVE-SNDVSYW-D01)
Green: (AVE-SNDVSYG-D01)

3.5 W
3.64 W
4.76 W
Repetition Rate of Strobe: 50 cycles per minute
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Overheat Protection: Yes (+85°C / +185°F)
Reverse Polarity Protection: Yes
Transient Voltage: 38 V at 2 sec max, both polarities
Under-Voltage Protection (lockout): Yes
Over-Voltage Protection (lockout): Yes
Waterproof, Dust-proof, Vibration-proof: Yes



 For more info, technical specs, drawings, and wiring diagram, click the Spec Sheet icon below:

SuperNova DV Hyperlink
