Supernova DV NXT™
$240.00
Product details

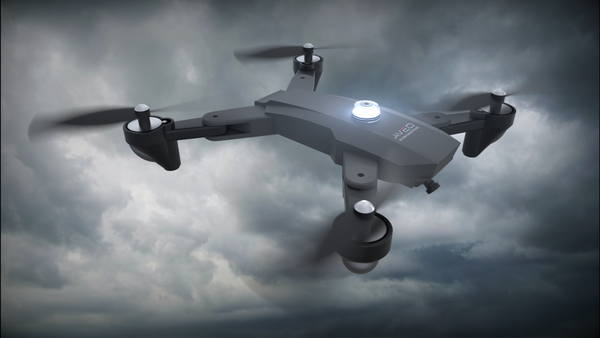

K-A Note: [9-36V] Designed for the demands of military/civilian UAS's. If you're an OEM or just seriously into UAV/Drones, this anti-collision light is for you. Precision-engineered light weight aluminum construction. Also perfect for Experimentals, Trikes & PPC's. Select the LED color you would like from the 2 choices above Red or White (Green - Europe). Then click the Add to Cart button.

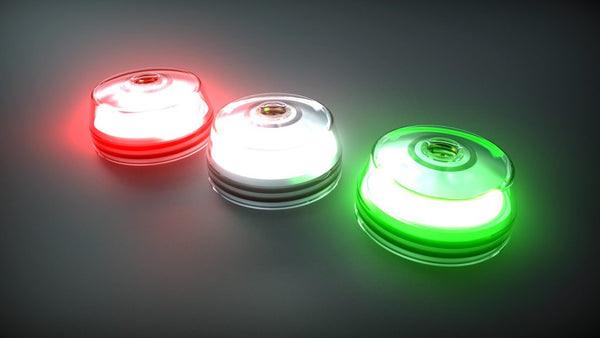

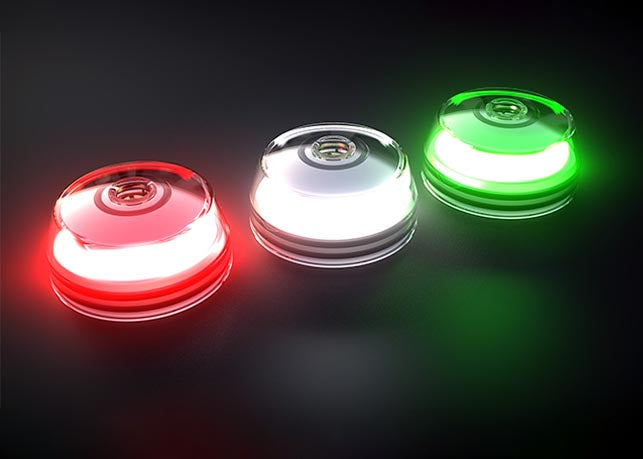

Anti-collision LED light Red or White (Green - Europe)
MSRP: $240.00 The SuperNova DV NXT™ – White or Red tiny anti-collision light is a high powered LED light. It have been designed to be lightweight, with low drag and with a low power draw to meet the highest requirements of all aircraft.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT - NOT A TSO CERTIFIED LIGHT
Specification
| Dimensions (mm): | 40 x 40 x 19.8 |
|---|---|
| Dimensions (inches): | 1.575“ x 1.575“ x 0.78“ |
| Weight: | 30 g / 1.06 oz |
| Operating Voltage Range: | 9-36 VDC |
| Input Current (peak) White and Green: Red: |
0.75 A @14V, 0.45 A @28V 0.85 A @14V, 0.50 A @28V |
| Input Power (peak) White and Green: Red: |
10.5 W @14V, 12.6 W @28V 11.9 W @14V, 14 W @28V |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Ambient Temperature: | from -55°C to +85°C from -67°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 39 V max |
| Under-Voltage Protection (lockout): | Yes |
| Waterproof, Dust-proof, Vibration-proof: | Yes |

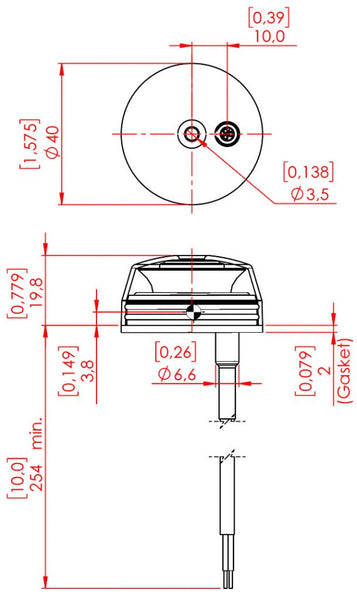

For more info, technical specs, drawings, and wiring diagram, click the Spec Sheet icon below:
