RedBaron NXT
$410.00
Product details
K-A Note: Think "Bang for the Buck". Value priced and extremely capable. Select your choice of RED or WHITE and then click the "Add to Cart" button.

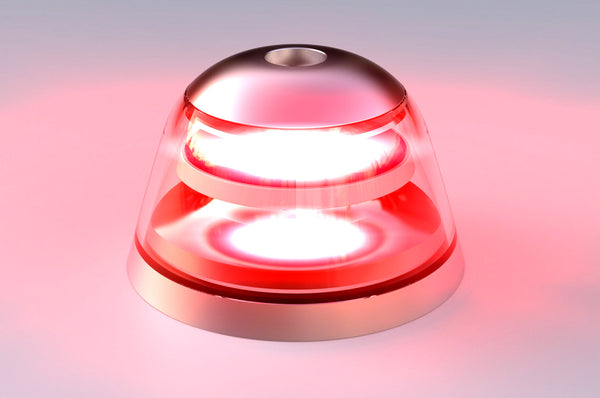

Anti-collision LED light – Red or White
MSRP: $419.00 At only 39.8 millimeters in height (1.565 inch) the new RedBaron NXT™ is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
| Dimensions (mm): | 64 mm x 64 mm x 39,8 mm |
|---|---|
| Dimensions (inches): | 2.52“ x 2.52“ x 1.565“ |
| Weight: | 90 g / 3.17 oz |
| Operating Voltage Range: | 9 – 18 VDC |
| Input Current – Red Strobe: | 3.20A @14V |
| Input Current – White Strobe: | 4.88A @14V |
| Input Power – Red Strobe: | 44.8W @14V |
| Input Power – White Strobe: | 68.3W @14V |
| Repetition Rate of Strobe: | 50 cycles per minute |

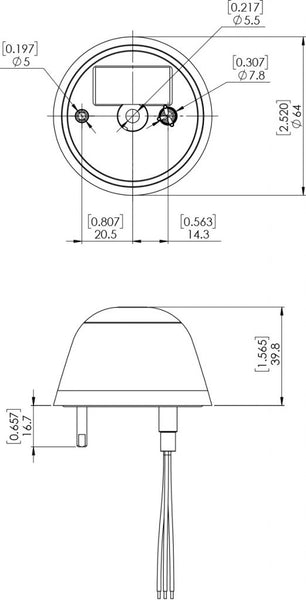

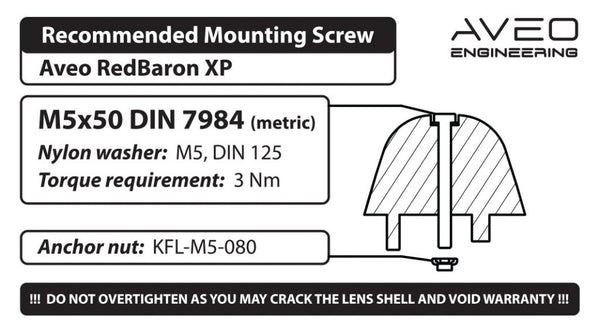

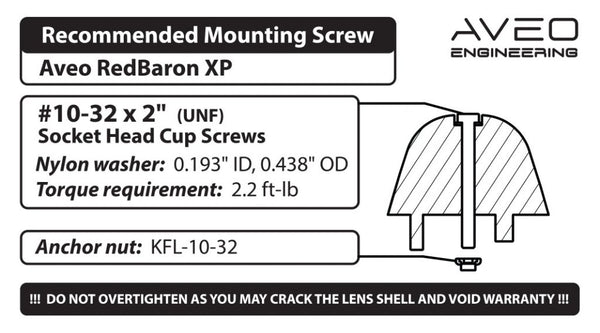

| Recommended size of mounting screw: | See pictures in section Drawing |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 80V, both polarities |
| Under-Voltage Protection (lockout): | Yes (7.5V) |
| Over-Voltage Protection (lockout): | Yes (19.9V) |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
For more info, technical specs, drawings, and wiring diagram, click the Spec Sheet icon below:
