MiniMax™ Ariel DayLite

$379.00

  • MiniMax™ Ariel DayLite RED
  • MiniMax™ Ariel DayLite WHITE
  • MiniMax™ Ariel DayLite AMBER
  • MiniMax™ Ariel DayLite Infrared (IR)
Pin It

Product details

K-A Note:  The latest and greatest in the MiniMax line of anti-collision lights.  Red, White, Amber, or Infrared colors!  Select your color choice above. Then click the Add to Cart button. New photos coming soon.

MSRP: $399.00

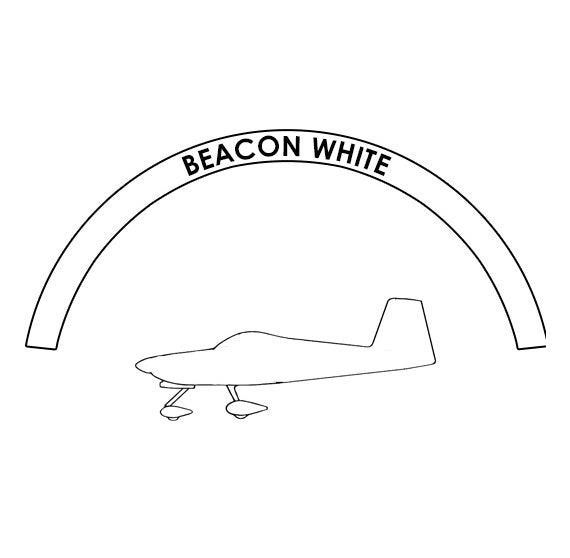

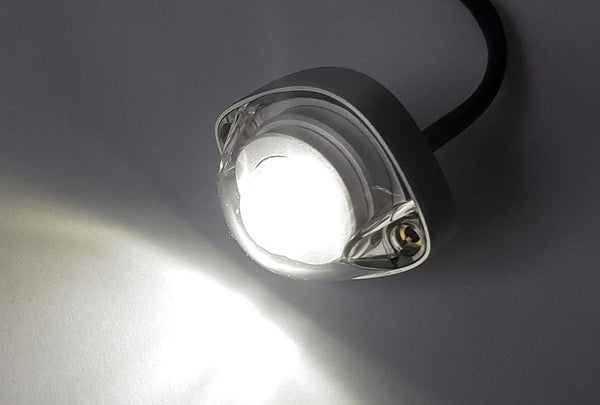

Developed originally at the request of the world’s leading UAV manufacturers, all of which now utilize Aveo lighting, the MiniMax Ariel™ is a compact powerhouse of hemispheric light. It is also a great anti-collision light to use on upper and lower fuselage in combination with Aveo DayLite™ wing lights due to its incredibly small footprint.

MiniMax Ariel™ is available in white, amber, red or infrared LED color.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

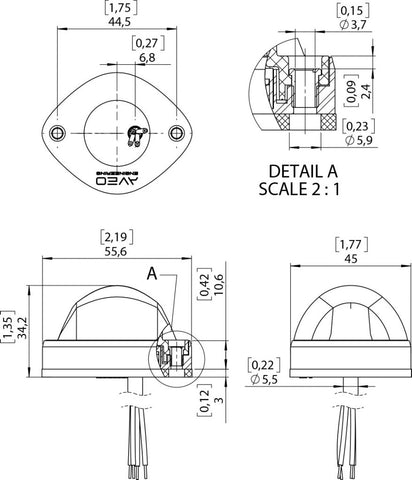

Dimensions: See drawing on the right
Weight: 53 g /  1.87 oz
Operating Voltage Range: 9-36 V DC
Input Current - strobe:
Input Current - steady:
2.0 A (@12V)
0.22 A (@12V)
Output Power - strobe:
Output Power - steady:
24 W
2.6 W
Flash Rate: 100/50 + 50/50 + 50/950(mS)
Ambient Temperature: from -40°C to +75°C
from -40°F to +167°F
Overheat Protection: Yes (+85°C / +185°F)
Transient Voltage: 60V
Under-voltage Lockout: 9V, not more
Over-voltage Lockout: 36V, not less
Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes
Wiring: Teflon insulation, 500V
Wire length from base of unit 254mm (10") min.

Red:

Yellow:

Black:

Blue:

VCCP - AWG 20,
Positive power supply line for position
VCCS - AWG 20,
Positive power supply line for strobe
GND - AWG 20,
Common negative power supply line
SYNC - AWG 20,
Synchronization line
Note: Performance at 25°C and 88% DC-DC efficiency



All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

For more info, technical specs, drawings, and wiring diagram, click the icon below:
