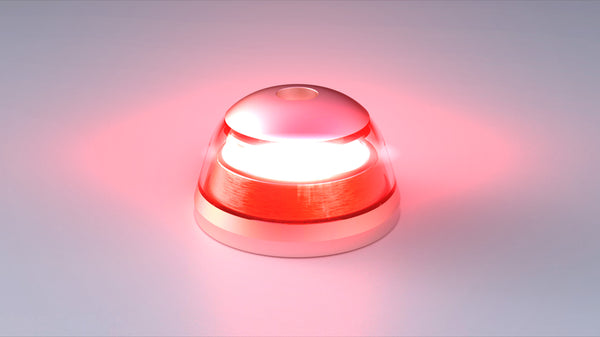

RedBaron Mini™ NXT
$305.00
Product details
KA Note: Think "Bang for the Buck". Value priced and extremely capable. Select the LED color you would like from the 2 choices above (Red, White). Then click the Add to Cart button.
MSRP: $314.00 At only 33.8 millimeters in height (1.33 inch) the new RedBaron Mini NXT™ is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.
| Dimensions (mm): | 58 mm x 58 mm x 33,8 mm |
|---|---|
| Dimensions (inches): | 2.28“ x 2.28“ x 1.33“ |
| Weight: | 70 g / 2.47 oz |
| Operating Voltage Range: | 9 – 18 VDC |
| Input Current: | 2A @14V |
| Input Power: | 28W @14V |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 80V, both polarities |
| Under-Voltage Protection (lockout): | Yes (7.5V) |
| Over-Voltage Protection (lockout): | Yes (19.9V) |
| Waterproof, Dust-proof, Vibration-proof: | Yes |

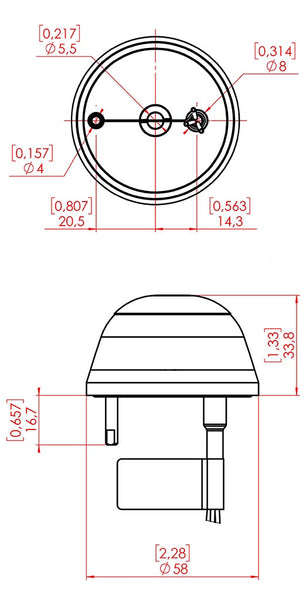

For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
