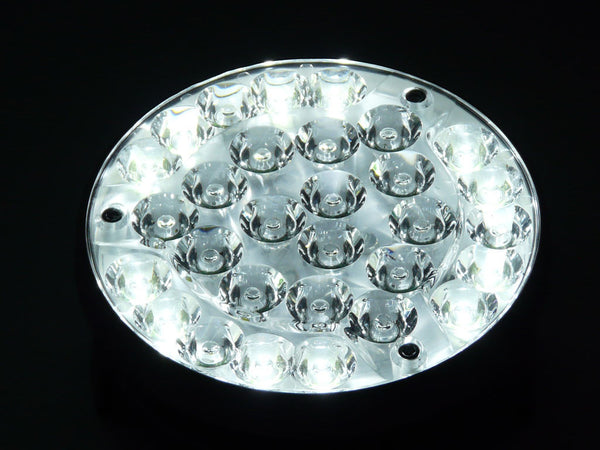

Hercules™ 20 LED Landing/Taxi/WigWag
$795.00
Product details
K-A Note: This is the PAR 36 replacement light for much of general aviation. Same light as the Herc 30 but with 20 LED's instead of 30. This light is a 3 in 1 light that is a Landing / Taxi / WigWag light.
MSRP: $825.00 AveoEngineering introduces the exclusive next-generation Hercules™ landing/taxi/wigwag light module.
Alright, alright, so there are some of you that want your plane to look like a Boeing Jumbo in the pattern, so we went to the skunkworks and using our incredible light emitting surface MaxiChip™ technology, we built you the ultimate disc landing light. Take that Brand X!!!
| Number of LED: | 20 |
|---|---|
| Input voltage: | from +9 to +36 VDC |
| Current: | - Taxi -> max. 2.2A (12V ) - Landing -> max. 4.9A (12V ) - Landing + Taxi -> max. 7.0A (12V ) |
| Output power [Hi/Low]: |
- Taxi -> 23/11W |
| Voltage protection: | 80V, both polarities |
| Under-voltage lockout: | 8.5V , not more |
| Over-voltage lockout: | 37V, not less |
| Ambient temperature: | from -55°C to +85°C (from -67°F to +185°F) |
| Function description: |
a. Taxi, steady light - 6 LEDs |
| Beam Pattern: | a. Landing: 12° Vert 12° Horizont b. Taxi: 12° Vert 12° Horizont |
| Light Intensity (calculated): | a. 70.000 cd - Landing Hi b. 38.000 cd - Landing Lo c. 24.000 cd - Taxi Hi d. 14.000 cd - Taxi Lo e. 94.000 cd - Landing + Taxi Hi f. 52.000 cd - Landing + Taxi Lo |
| Color and shade: | cool white, 5000K – White |
| Programmable Soft-Start: | less than 50mS |
| Overheat protection: | temperature dependent decrement intensity |

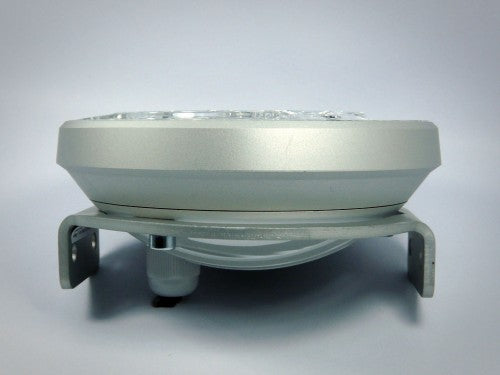

| Weight: | less than 1.08lbs (490 g) with Aveo bracket |
| Useful life: | not less than 30.000,0 aircraft flight hours |
| Dimension: | 4.33” Round x 1.79” (D = 110mm, H = 45.7mm) |
| Material: | a. Housing/Heatsink: Aluminum Alloy, natural anodizing b. Lens: Clear PMMA |
All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.
Environmentally Friendly
The AveoMaxx™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally - friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a "green" aircraft light!
For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
