PowerBurst NXT™ 3-in-1 LED Nav/Pos/Strobe
$420.00
Product details
K-A Note: This is the new and improved PowerBurst NXT™. A sleek, narrow form-factor that is now even more budget friendly. Black Gaskets come standard and is what we stock. 9-18 Volt

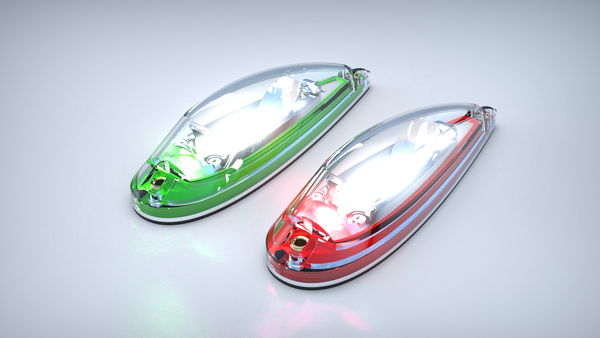

***If you'd like the White or Red/Green gaskets, that's no problem, we'll special order for you and may take a bit longer.***
Often copied, never matched
At only 27.5 millimeters in height (1.083 inch) the new PowerBurst NXT™ is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and LED management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification

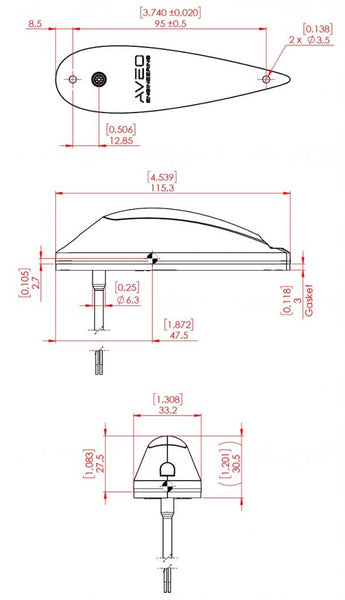

| Dimensions (mm): | 115.3 mm x 27.5 mm x 33.2 mm |
|---|---|
| Dimensions (inches): | 4.539” x 1.083” x 1.308” |
| Weight: | 64 g / 2.25 oz |
| Operating Voltage: | 9-18 V DC |
| Input Current – Position / Nav - Green(@14V): |
0.22 A |
| Input Current – Position / Nav - Red(@14V) |
0.22 A |
| Input Current – Strobe (@14V) |
1.8 A peak |
| Input Power – Position / Nav - Green |
3.1 W |
| Input Power – Position / Nav - Red |
3.1 W |
| Input Power – Strobe | 25.2 W peak |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M3 / DIN 7984 |
| Torque requirement for screw M3 / DIN 7984: | 0.5 Nm |
| Ambient Temperature: | from -40°C to +85°CC from -40°F to +185°F |
| Overheat Protection: | Yes |
| Reverse Polarity Protection: | Yes |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
