PosiStrobe Titania™


Pin It

Product details

K-A Note:  The PosiStrobe Titania is the follow-on to the wildly successful PosiStrobe CP.  New lower price too!  If you have a Certified GA aircraft, this is the tail light you want.  The best in the business and fully FAA TSO'd.

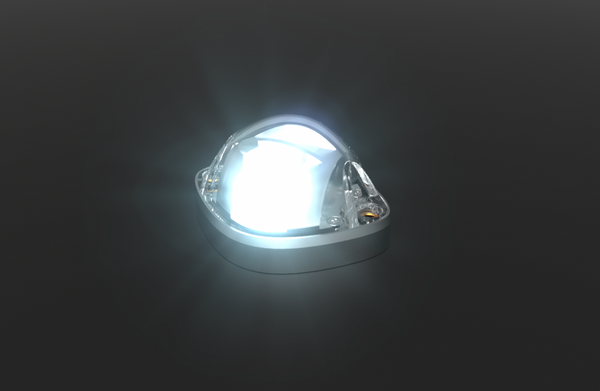

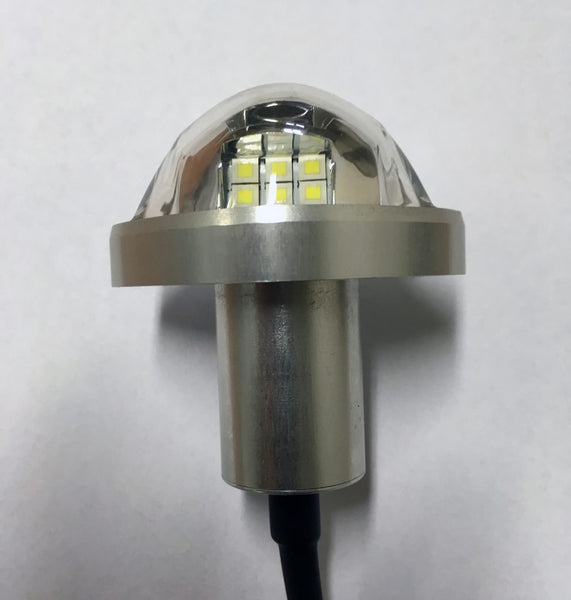

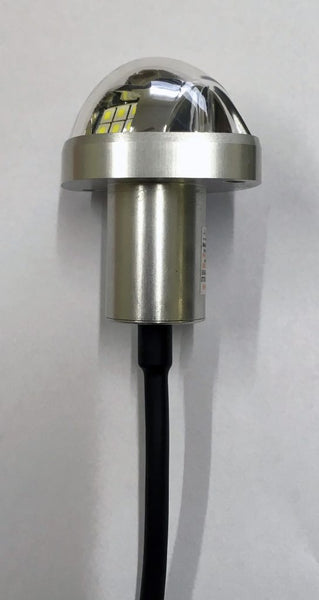

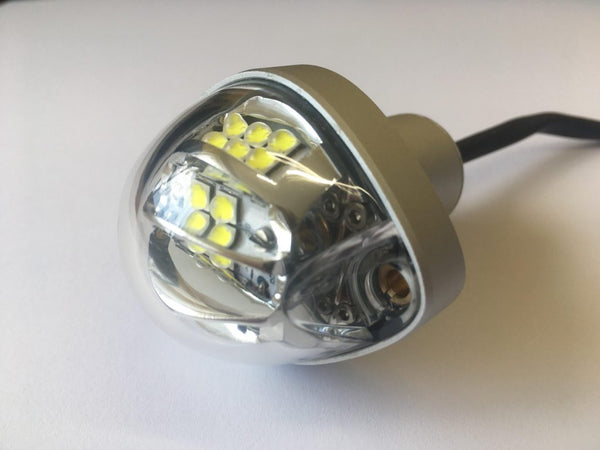

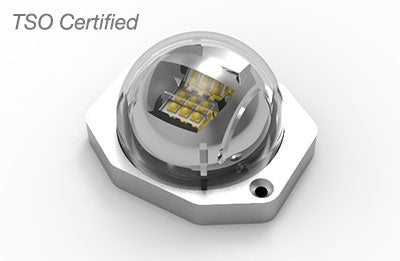

MSRP: $499.00  The PosiStrobe Titania™ is a new generation rudder white position and strobe light. It fits almost all the standard rudder mounts of aircraft. An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any certified aircraft requiring a rear coverage light due to wingtip light coverage zone limits. The PosiStrobe series is the most imitated and copied light by our competitors, but there is ONLY one PosiStrobe™, don’t be fooled by competitive “clones”, we were the first and we are the only ones with our exclusive circuitry, advanced optics and reflectors and candela performance.

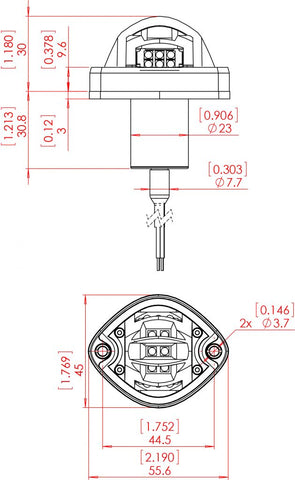

PosiStrobe Coverage Aveo Engineering                     PosiStrobe Titania Dimensions small

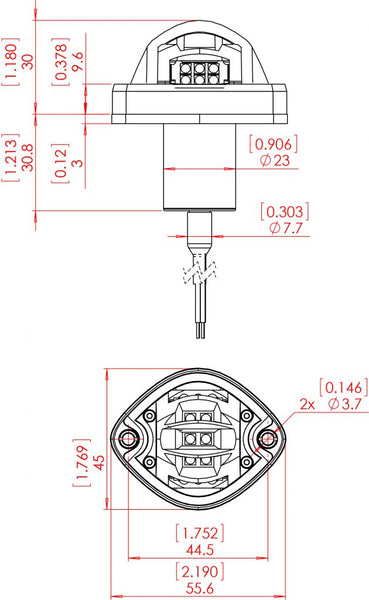

Dimensions (mm): 44.9 mm x 55.6 mm x 30 mm
Dimensions (inches): 1.769“ x 2.19“ x 1.18“
Weight (g): 98 g
Weight (lb): 0.216 lb
Operating Voltage Range: 9 – 36 VDC
Input Current – Position: 0.17 A @36V, 0.22 A @28V, 0.41 A @14V, 0.66 A @9V
Input Current – Strobe: 1.6 A @36V, 1.9 A @28V, 4.2 A @14V, 4.4 A @9V
Input Power – Position: 6.2 W @36V, 6.2 W @28V, 5.8 W @14V, 5.9 W @9V
Input Power – Strobe: 58 W @36V, 53 W @28V, 59 W @14V, 40 W @9V
Input Power - Position / Nav - red: 7 W @36V, 7 W @28V, 6.7 W @14V, 7.2 W @9V
Input Power - Strobe: 39.6 W @36V, 39.2 W @28V, 32.2 W @14V, 26.1 W @9V
Repetition Rate of Strobe: 48 cycles per minute
Recommended size of mounting screw: M3
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F
Overheat Protection: YES (+85°C)
Reverse Polarity Protection: YES
Transient Voltage: 60V at 2sec max, both polarities
Under-Voltage Protection (lockout): YES (9V)
Over-Voltage Protection (lockout): YES (36V)
Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES


For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:

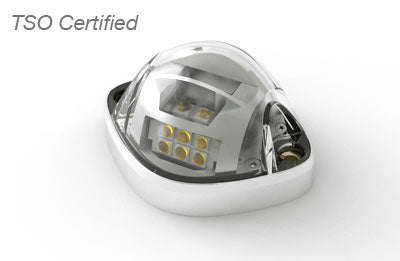

TSO Certified PosiStrobe TitaniaPosiStrobe Titania TSO
