Ultra DayLite NXT™
$598.00
Product details
K-A Note: Same footprint and form factor you expect but now in a more budget-friendly design. 3 in 1 LED Nav / Pos / Strobe Light. 9-18 Volt

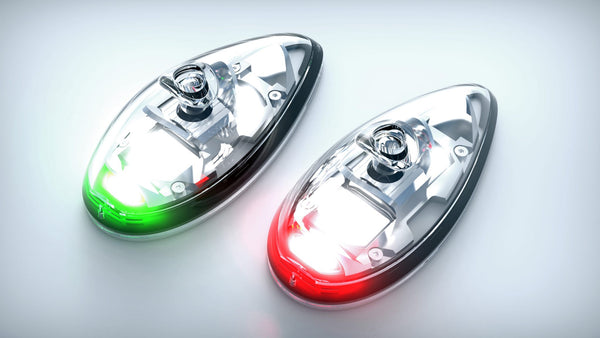

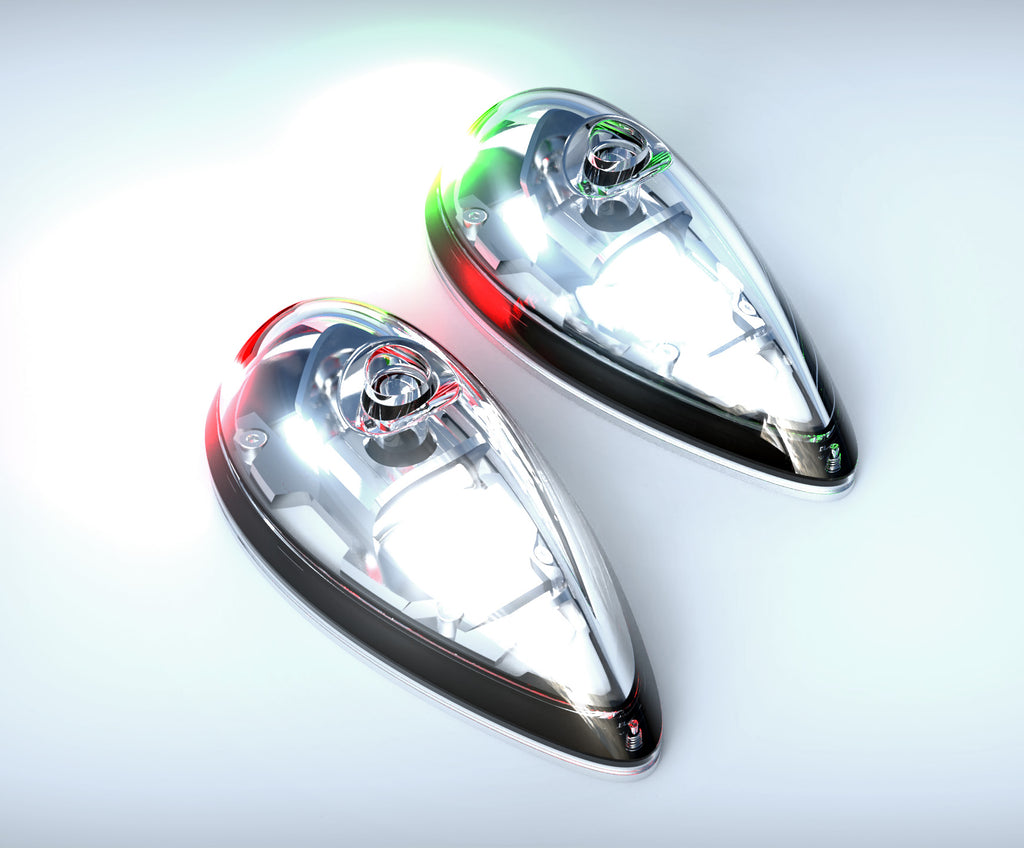

Navigation / Position / Strobe LED light
At only 35.6 millimeters in height (1.40 inch) the new Ultra DayLite NXT™ is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Installation Manual

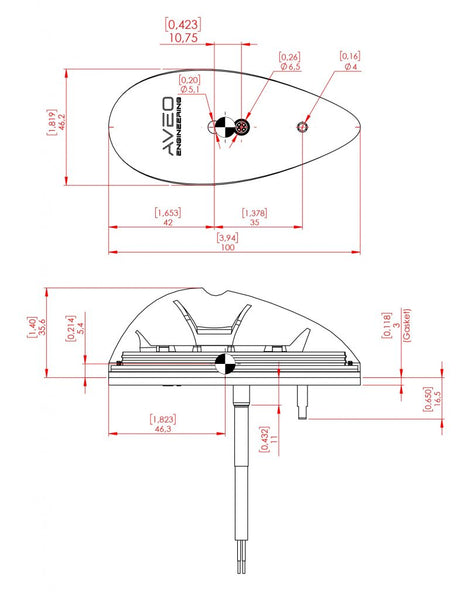

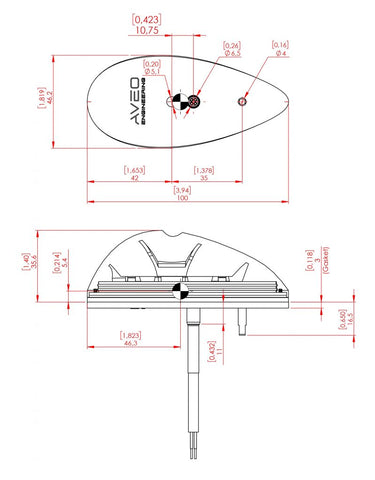

| Dimensions (mm): | 100 mm x 46.2 mm x 35.6 mm |
|---|---|
| Dimensions (inches): | 3.94“ x 1.819“ x 1.40“ |
| Weight: | 92 g / 3.25 oz |
| Operating Voltage Range: | 9 – 18 VDC |
| Input Current Red – Strobe – Position |
2.29 A @14 VDC 0.23 A @14 VDC |
| Input Current Green – Strobe – Position |
2.32 A @14 VDC 0.25 A @14 VDC |
| Input Power Red – Strobe – Position |
32 W @14 VDC 3.2 W @14 VDC |
| Input Power Green – Strobe – Position |
32.5 W @14 VDC 3.4 W @14 VDC |
| Recommended mounting screw: | See pictures in section Recommended light installation |
| Tightening torque: | See pictures in section Recommended light installation |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
