Pegatron™
$1,219.00
Product details
K-A Note: If you have a Certified GA aircraft and want the same position light Gulfsteam uses, this is the tail light you want. The best in the business and fully FAA TSO'd.

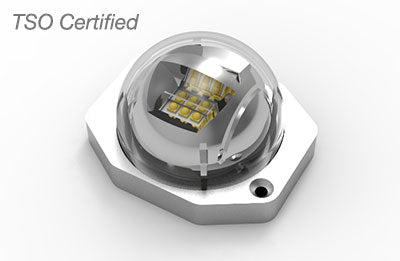

MSRP: $1245.00 Compact Tail Fin position light only. Features terminal connectors on base. Pegatron is direct drop-in replacement for the Honeywell Astreon Tail Position Light.

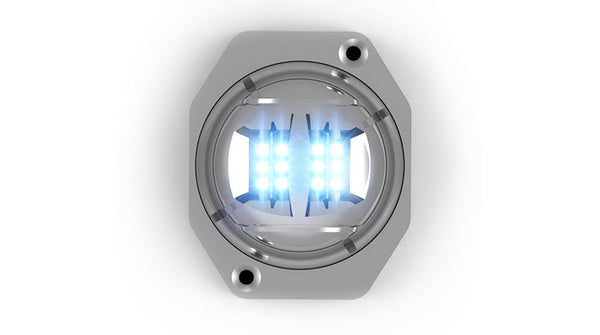

12 High brightness LEDs for POSITION (140°) coverage
Packed with 12 ultra high brightness CREE LEDs for POSITION mode in white color that are the industry state-of-the-art in performance and output lumens, the Pegatrons feature a significantly lower footprint than competitor lights.

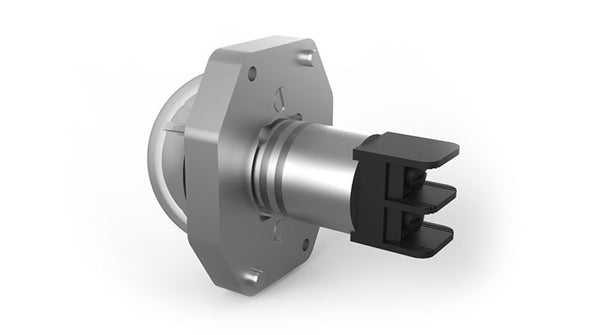

Easy connect with terminal
Gulfstream Drop-In Replacement STC for ModelsG100, G200, GII, GIII, GIV, G450, GV and G550
Pegatron™ is a solid-state, hermetically sealed position light that is simple drop-in replacements for those old legacy lights – A2064, B9730, 30-2368, 30-2382.

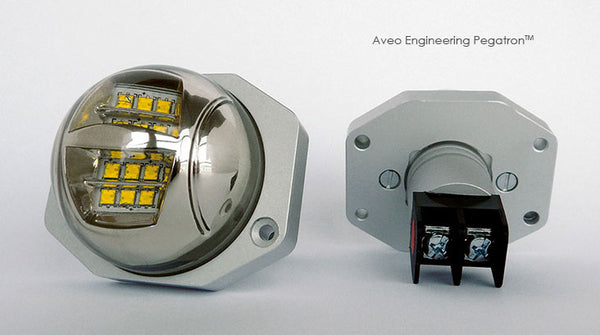

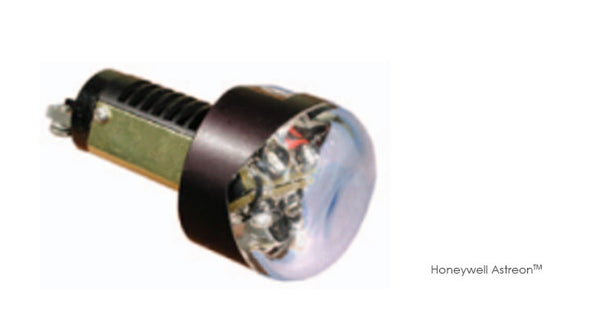

Aveo Engineering Pegatron vs. Honeywell Astreon comparison
Only three multiple-generations old low-power LEDs vs. Pegatron high power output means being seen from 5 times the distance.

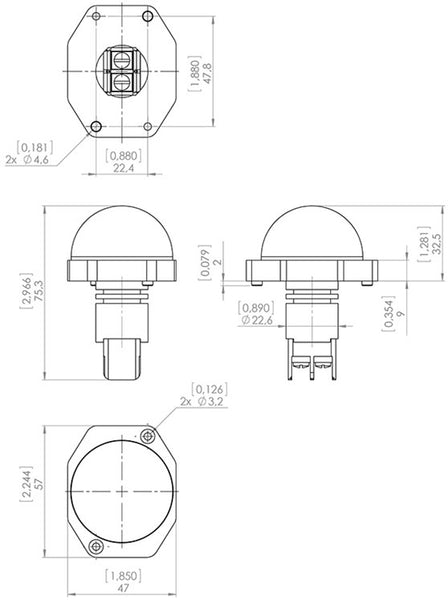

| Dimensions: | see drawing |
|---|---|
| Output power: | 5.2W |
| Weight (g): | 106 g |
| Weight (lbs): | 0.234 lbs |
| Operating Voltage Range: | 9-36V DC |
| Primary input voltage: | 28V DC |
| Over-voltage protection: | 80V (1s) |
| Input current at 28V: | 0.22A (+/- 10%) |
| Reverse polarity protection: | Yes |
| Over-Voltage shut down: | 38.5V DC |
| Operating temperature: | -40°C to +85°C |
| Over-Temperature protection: | YES |
| Under-Voltage protection: | YES |
| Waterproof: | YES |
| Vibration-proof: | YES |
| Shock-proof: | YES |
| Dust-proof: | YES |
For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
