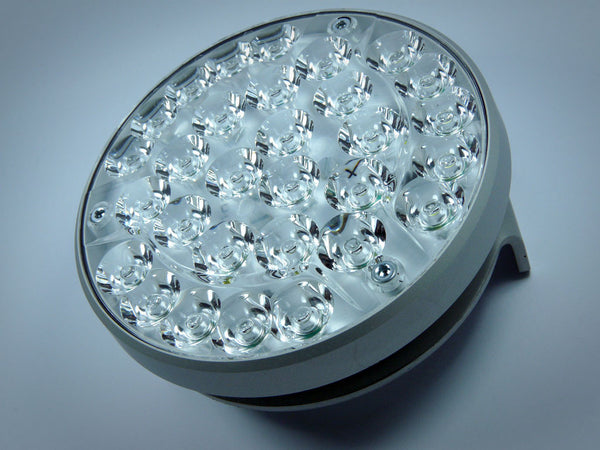

Hercules™ Drop-In Plus
$869.00
Product details

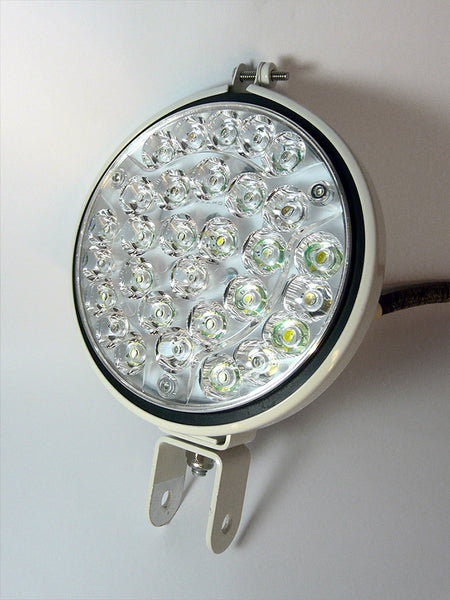

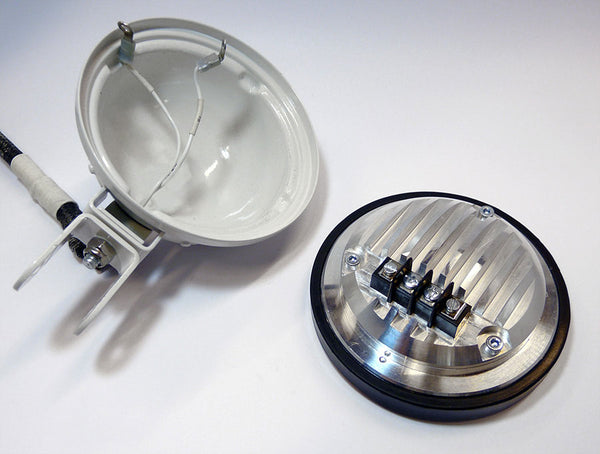

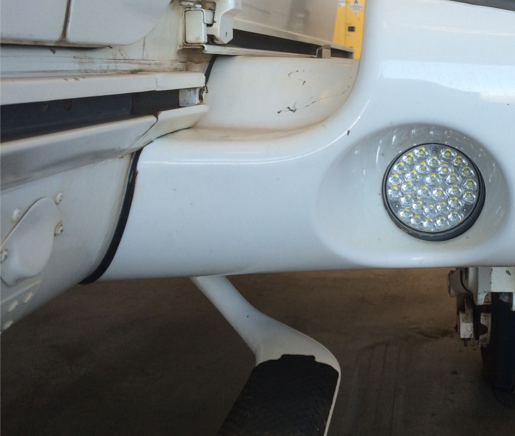

K-A Note: This is the PAR 36 replacement light for much of general aviation. The "Drop-In" version is by far the most popular, and is what we stock. Easy Drop-Install, but each light has landing/taxi/wigwag as part of the light.
MSRP: $895.00 AveoEngineering introduces the exclusive next-generation landing/taxi/wigwag light module. The undeniable favorite in all global side-by-side comparison tests, the Hercules features 3 modes in its standard build…. Landing, Taxi or WigWag. Replacement for Legacy Lights. A PAR 36 drop-in with the legendary Hercules power!

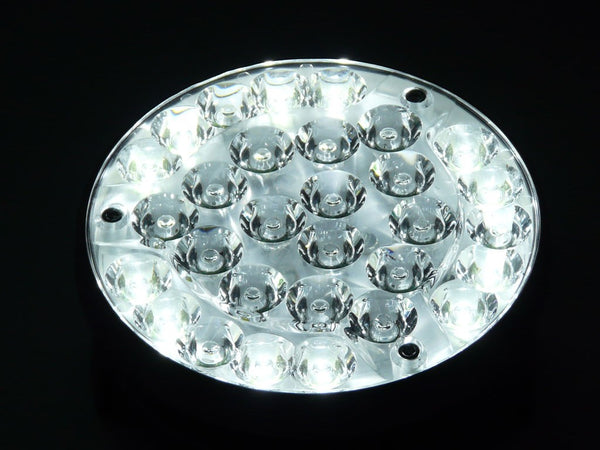

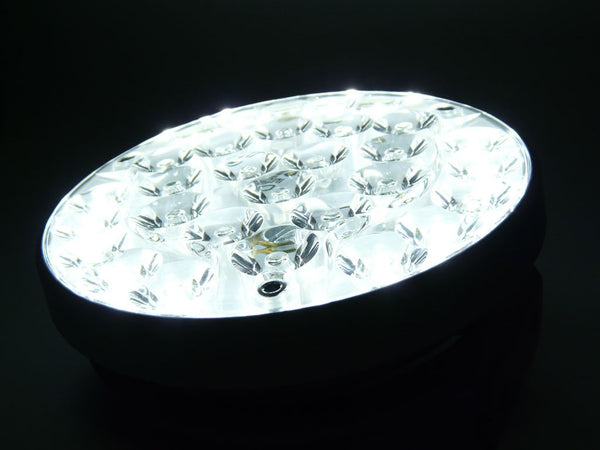

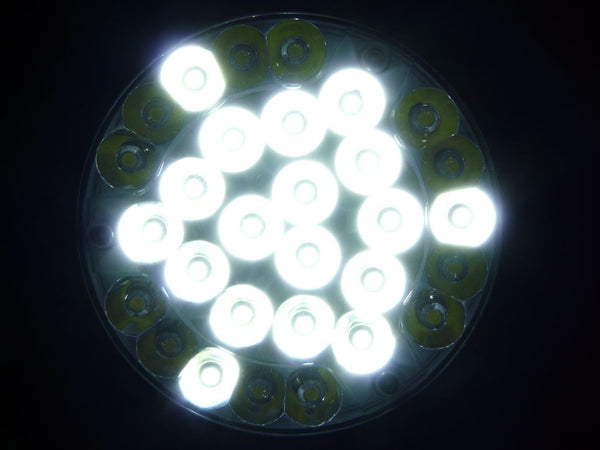

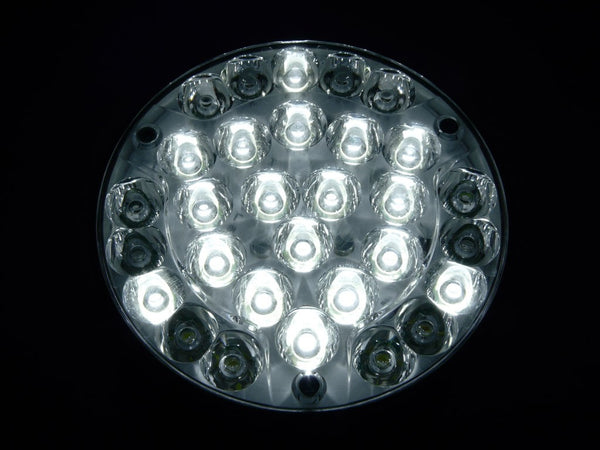

Packed with 30 ultra high brightness CREE aviation white LEDs for LANDING or TAXI light coverage

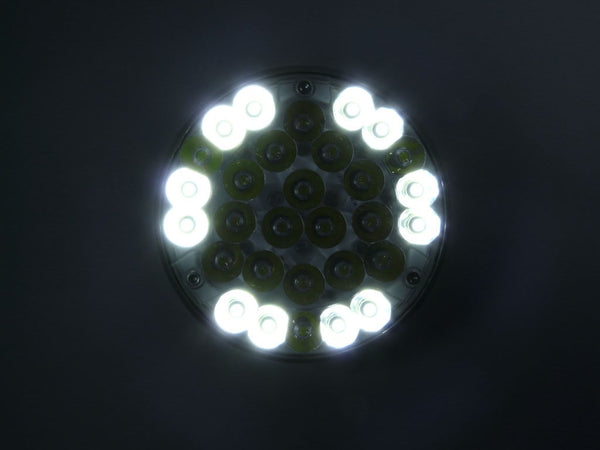

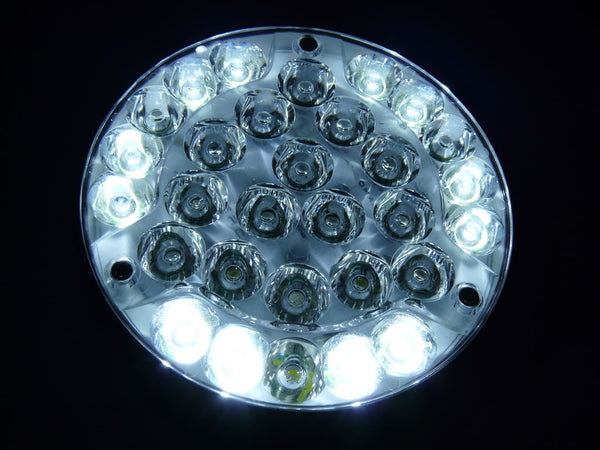

12 High brightness LEDs for TAXI and WIGWAG mode Packed with 12 ultra high brightness CREE aviation white LEDs for TAXI and WIGWAG mode
30 High brightness LEDs for FULL POWER with HIGH/LOW function
Technical Specifications
| Number of LED: | 30 |
|---|---|
| Input voltage: | from +9 to +36 VDC |
| Current: | - Taxi -> max. 4.2A (12V ) - Landing -> max. 6.3A (12V ) - Landing + Taxi -> max. 10.5A (12V ) |
| Output power [Hi/Low]: |
- Taxi -> 45/21W |
| Voltage protection: | 80V, both polarities |
| Under-voltage lockout: | 8.5V , not more |
| Over-voltage lockout: | 37V, not less |
| Ambient temperature: | from -55°C to +85°C (from -67°F to +185°F) |
| Function description: |
a. Taxi, steady light - 12 LEDs |
| Beam Pattern: | 12° |
| Overheat protection: | temperature dependent decrement intensity |
| Weight: | less than 1.08lbs (490 g) |
| Useful life: | not less than 30.000,0 aircraft flight hours |

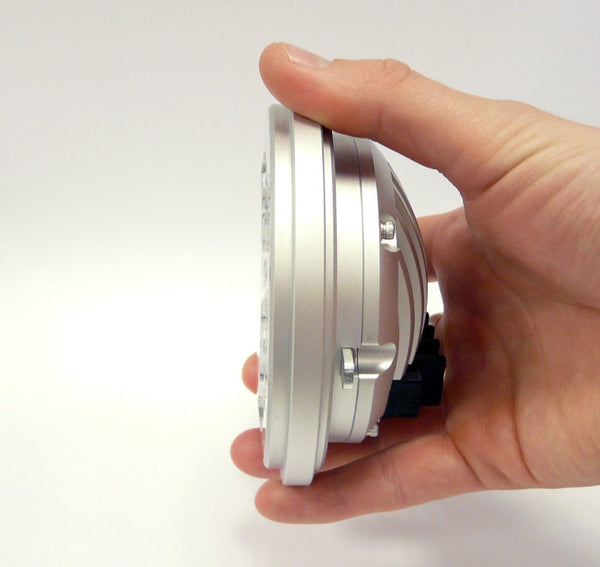

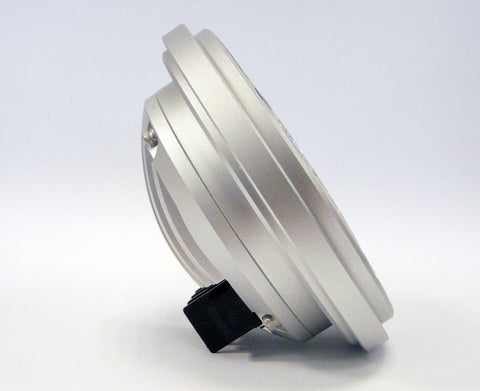

| Dimension: | 4.33” Round x 1.79” (D = 110mm, H = 45.7mm) |
| Material: | a. Housing/Heatsink: Aluminum Alloy, natural anodizing b. Lens: Clear PMMA |
All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.
Environmentally Friendly
The Hercules™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally - friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a "green" aircraft light!
For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
