RedBaron XP Galactica™

$775.00

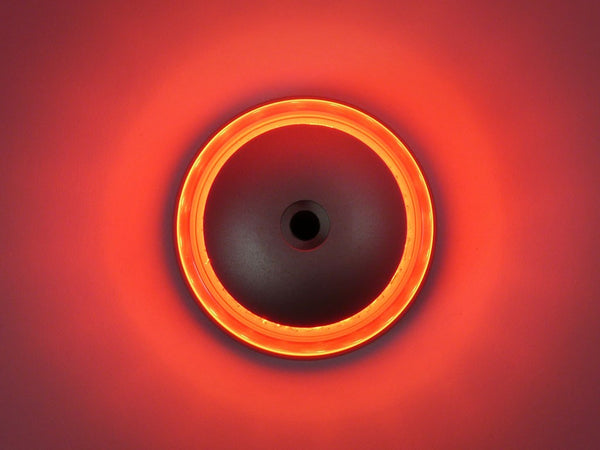

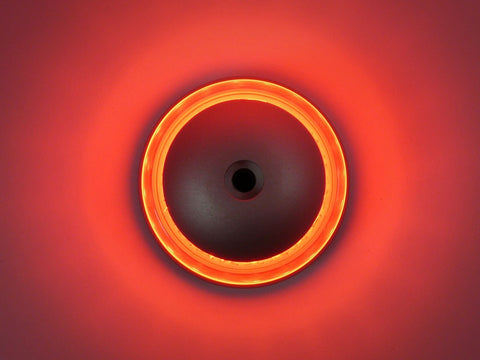

  • RedBaron XP Galactica™ RED

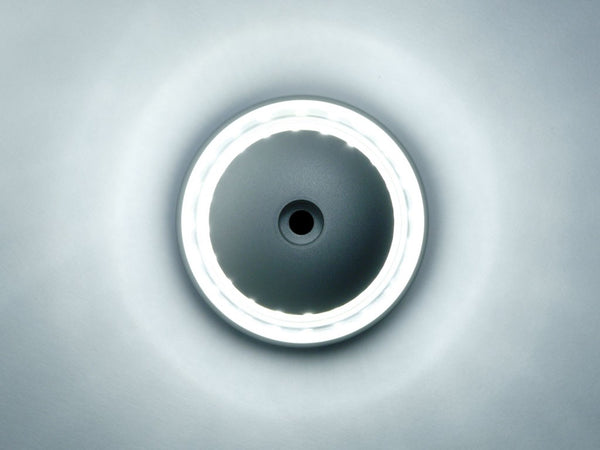

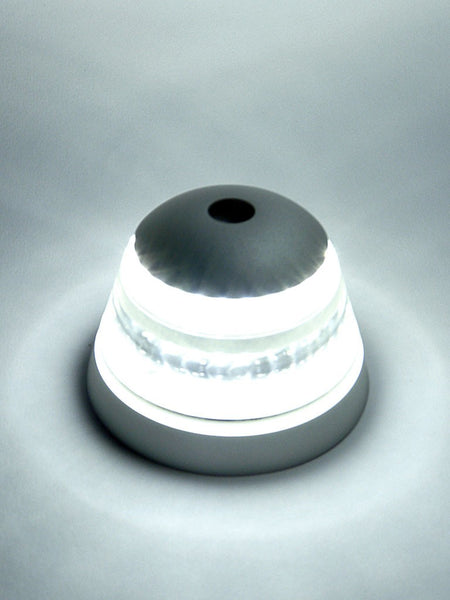

  • RedBaron XP Galactica™ WHITE
Pin It

Product details

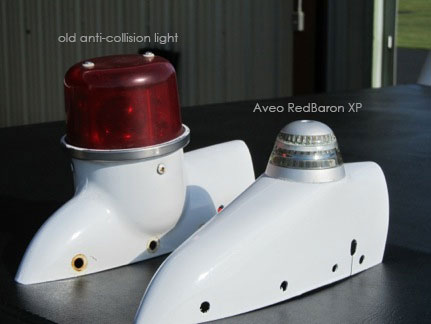

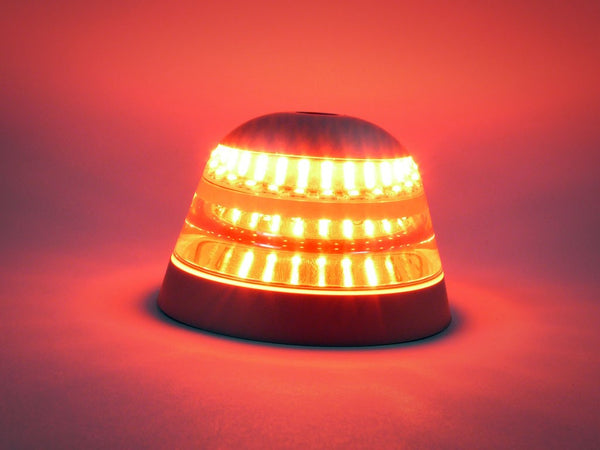

K-A Note:  If you have a Certified GA aircraft, this is the light you want. Fully FAA TSO'd light.  All annodizing on RedBaronXP Galactica lights is now silver.  Some photos (left) show the XP with the original red annodizing.  Your color decision is for LED color.  Select your choice of RED or WHITE and then click the Add to Cart button.

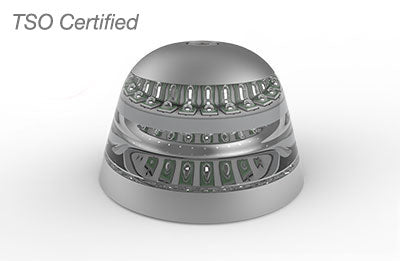

MSRP:  $799.00  The RedBaron series of anticollision lights were designed for certified aircraft requirements. They represent the cutting edge in optics design and the use of LED arrays that have been optimized for coverage patterns. This light features highly polished reflectors and is available in either red, white or custom order NVIS/IR.

The RedBaron XP Galactica™ version incorporates 40 of the brightest LEDs available in the world today, with chromacity and intensity compliant to all international aviation and safety standards. The optical performance is incredible, and these are the ideal replacement unit for any anticollision light system in existence.



Unlike our competitors we continually introduce upgraded versions because of the rapidly changing LED technology, so you will never see old LEDs in Aveo lights as you do with other suppliers who are still using low efficiency, low output, less reliable LEDs from 5 to 7 years ago!






























Lowest drag coefficient in the industry as proven in CFD analysis on the University of Michigan Cray Computer cluster.





 Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry. Quite simply the lowest weight solution you can get, in 9 to 36 volt input range too!

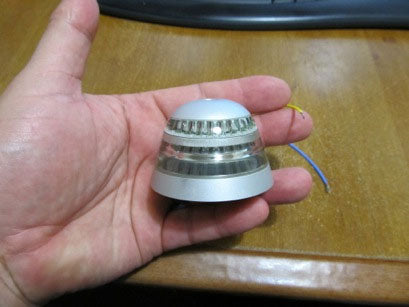

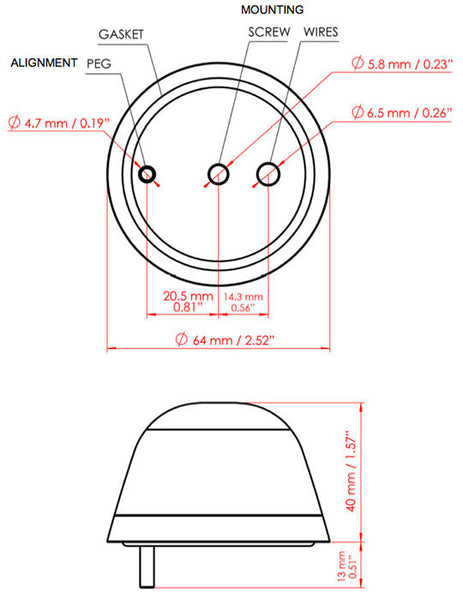

Dimensions (mm): 64 mm x 64 mm x 40 mm
Dimensions (inches): 2.52” x 2.52” x 1.57”
Weight (g): 150 g
Weight (oz): 5.29 oz
Operating Voltage Range: 9 – 36 Vdc
PERFORMANCE (WHITE):
Output current at 9..18VDC: 0.4-0.6A/LED strobe
Output current at 18...36VDC: 0.6A/LED strobe
Output power at 9..18VDC: 52W (78W) in pulse
Output power at 18...36VDC: 78W in pulse
Input power at 12VDC: 59.4W in pulse
Input power at 28VDC: 87W in pulse
PERFORMANCE (RED):
Output current at 9..18VDC: 0.4-0.6A/LED strobe
Output current at 18...36VDC: 0.6A/LED strobe
Output power at 9..18VDC: 35W (53W) in pulse
Output power at 18...36VDC: 53W in pulse
Input power at 12VDC: 59.4W in pulse
Input power at 24VDC: 59.4W in pulse
VOLTAGE PROTECTION:
Transcend voltage: 60V
Under-voltage lockout: 9V not more
Over-voltage lockout: 36V not Less
Exceed requirements of: - ETSO C96a
- SAE AS8017a
- DO-160
Repetition Rate of Strobe: 48 cycles per minute
Recommended size of mounting screw: M5x45mm (DIN912) or equivalent
(Torque 3.0 Nm [2lb ft])
Waterproof YES
Vibration-proof YES
Shock-proof YES
Dust-proof YES



All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.




For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
