Pacifica II Mini™
$385.00
Product details
K-A Note: High speed.......Low drag! Super clean landing or taxi light in your choice of beam width's. (3, 10, 28 deg or 37 x 9 elliptical) Composite finish available in White, Black, or Primer. Because there are SO many options available, this is a SPECIAL ORDER light. That's no problem, we are happy to order them for you. Estimate 3-4 weeks for delivery.
Aerodynamic Under-wing or Under-fuselage Taxi or Landing Light
MSRP: $398.00 Aveo Introduces the Aerodynamic under-wing/under fuselage Pacifica Series of taxi or landing lights. Incorporating Aveo’s proprietary CuPillar™, AfterBurners™ and NTC technologies, coupled with our KrystalKelvin™ optical grade lenses for exact wavelength transmissions. Aveo makes retrofit upgrades easily possible for incredible intensity lights in low drag, simple to mount shapes.
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification

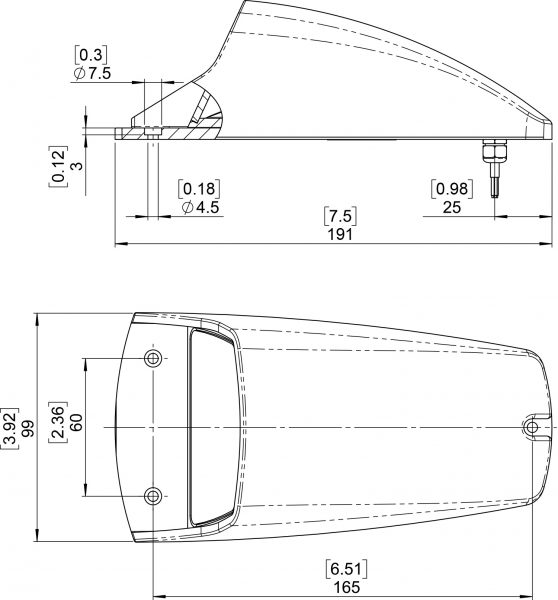

| Dimensions (mm): | 191 mm x 99 mm |
|---|---|
| Dimensions (inches): | 7.5“ x 3.92“ |
| Weight: | 490 g / 17.28 oz |
| Operating Voltage Range: | 10–36 VDC |
| Input Current (at 25°C): | 0.18 A @ 28 VDC 0.33 A @ 14 VDC |
| Input Power: | 5 W @ 28 VDC 4.6 W @ 14 VDC |
| Ambient Temperature: | from -40°C to +85°C from -40°F to +185°F |
| Transient Voltage: | 2 seconds +80 V |
| Under-Voltage Lockout: | +9 VDC, not more |
| Over-Voltage Lockout: | +36 VDC, not less |
| Color: | White finish Black finish Primer - Base color |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
Intensity
Lens 3°+ 3°: 40,000 cd + 40,000 cd
Lens 3°+ 10°: 40,000 cd + 18,000 cd
Lens 3°+ 28°: 40,000 cd + 3,500 cd
Lens 3°+ 37×9°- eliptical: 40,000 cd + 3,600 cd
INSTALLATION MANUAL
