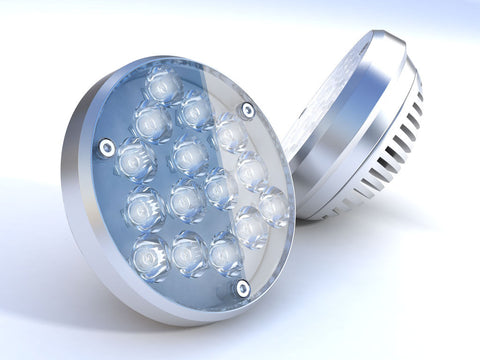

Atlas™ 15 LED Landing/Taxi/WigWag Light

$679.00

Pin It

Product details

K-A Note:  This Aveo light is a 3-in-1 Landing / Taxi / WigWag light ideal for planes that don't have a lot of mounting area. This version is "Drop-In" style with no bracket. Comes with a pigtail for wiring all functions.

MSRP:  $725.00  AveoEngineering introduces the exclusive next-generation AveoMaxx™ landing/taxi/wigwag light module.  You spoke, we listened. The disc light for external or leading edge insert mounts is here from Aveo. With 90,000 candela, the AveoMaxx Atlas™ outperforms the Brand X led disc lights by 2x to 5x the brightness. Gone also is the blue tint from HID lights that restrict pilot visibility.



Environmentally Friendly

The AveoMaxx™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally - friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a "green" aircraft light!

Technical Information

Number of LED: 15
Input voltage: from +9 to +36 VDC
Output power [Hi/Low]:

23/11W Taxi,
70/34W Landing,
93W/44W Taxi+Landing

Voltage protection: 80V, both polarities
Under-voltage lockout: 8.5V , not more
Over-voltage lockout: 37V, not less
Ambient temperature: from -40°C to +85°C
(from -40°F to +185°F)
Function description:

a. Taxi, steady light - 6 LEDs
b. Landing, steady light - 9 LEDs
c. Taxi+Landing - 15 LEDs
d. Synchro Mastrer function, active – low
e. Wig-Wag – Taxi LEDs only
f. Master/Slave select sequential and simultaneous Wig-Wag mode
g. High/Low power select for Landing and Taxi.

Beam Pattern: a. Landing: 12° Vert 12° Horizont
b. Taxi: 12° Vert 12° Horizont
Light Intensity (calculated): a. 85.000 cd - Landing Hi
b. 48.000 cd - Landing Lo
c. 25.000 cd - Taxi Hi
d. 14.000 cd - Taxi Lo
e. 110.400 cd - Landing + Taxi Hi
f. 62.000 cd - Landing + Taxi Hi
Color and shade: cool white, 5000K – White
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: less than 0.8lbs (364 g) with Aveo bracket
Useful life: not less than 30.000,0 aircraft flight hours.

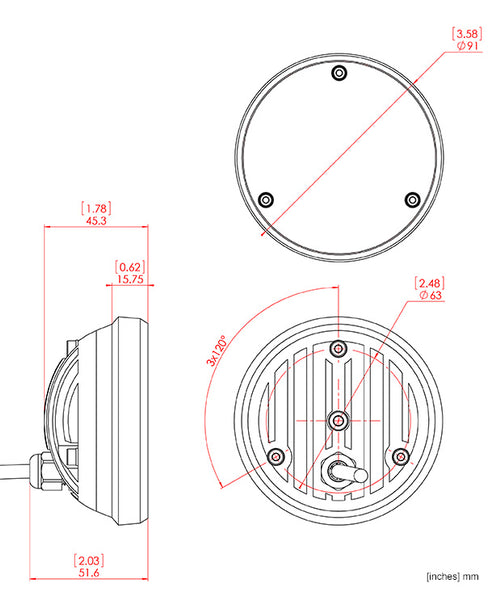

Dimension: 3.58” Round x 1.78” (D = 91mm, H = 45.3mm)
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA
